-Modular design, easy to install, suitable for most application.

-24 different mounting and direction available.

-High 95% efficiency for ratio 1/1, 1/2, 1/3, 1/4, 1/5

-Large tranmission force, clockwise or anti-clockwise operation.

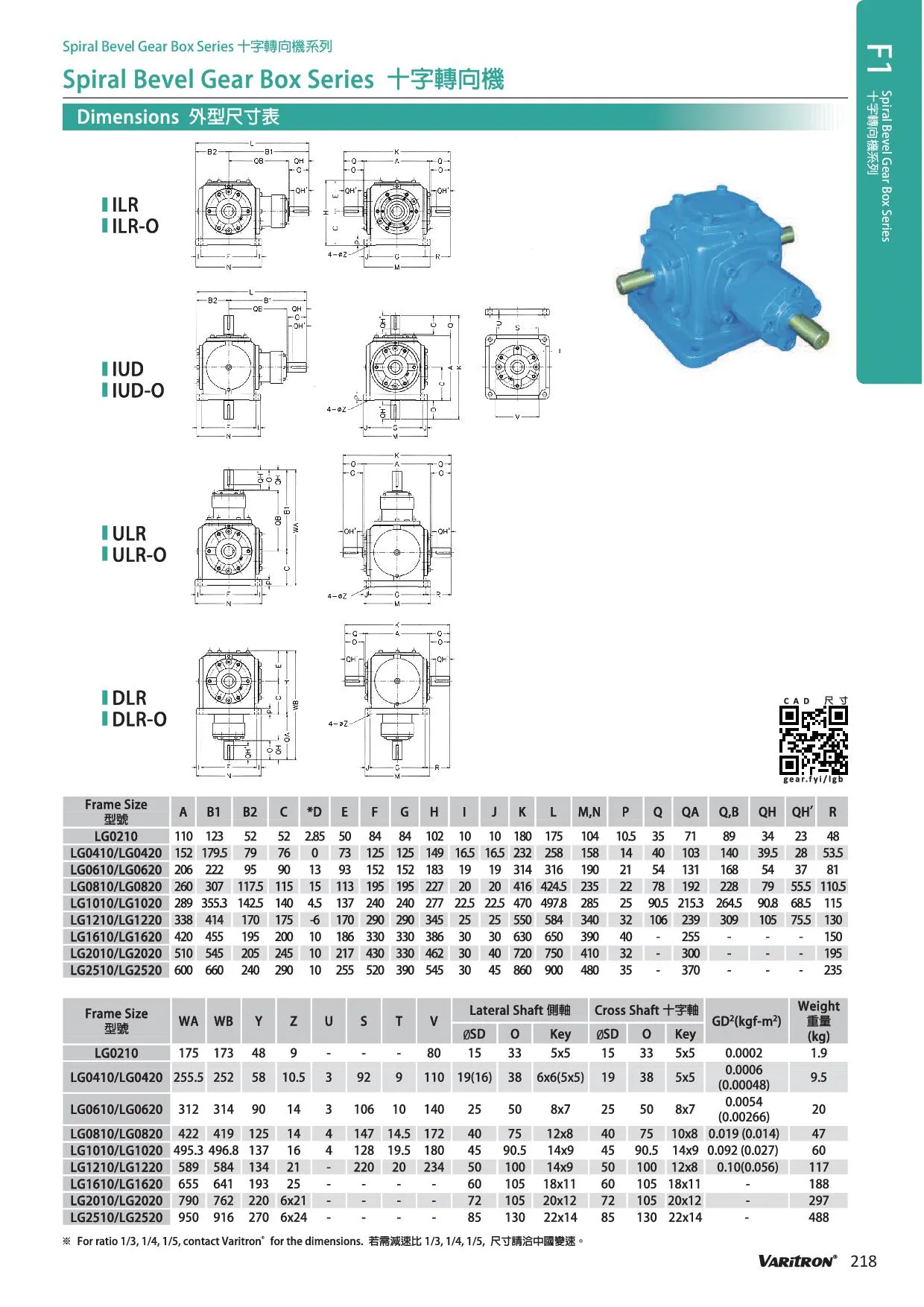

Spiral bevel gearbox mounting and direction

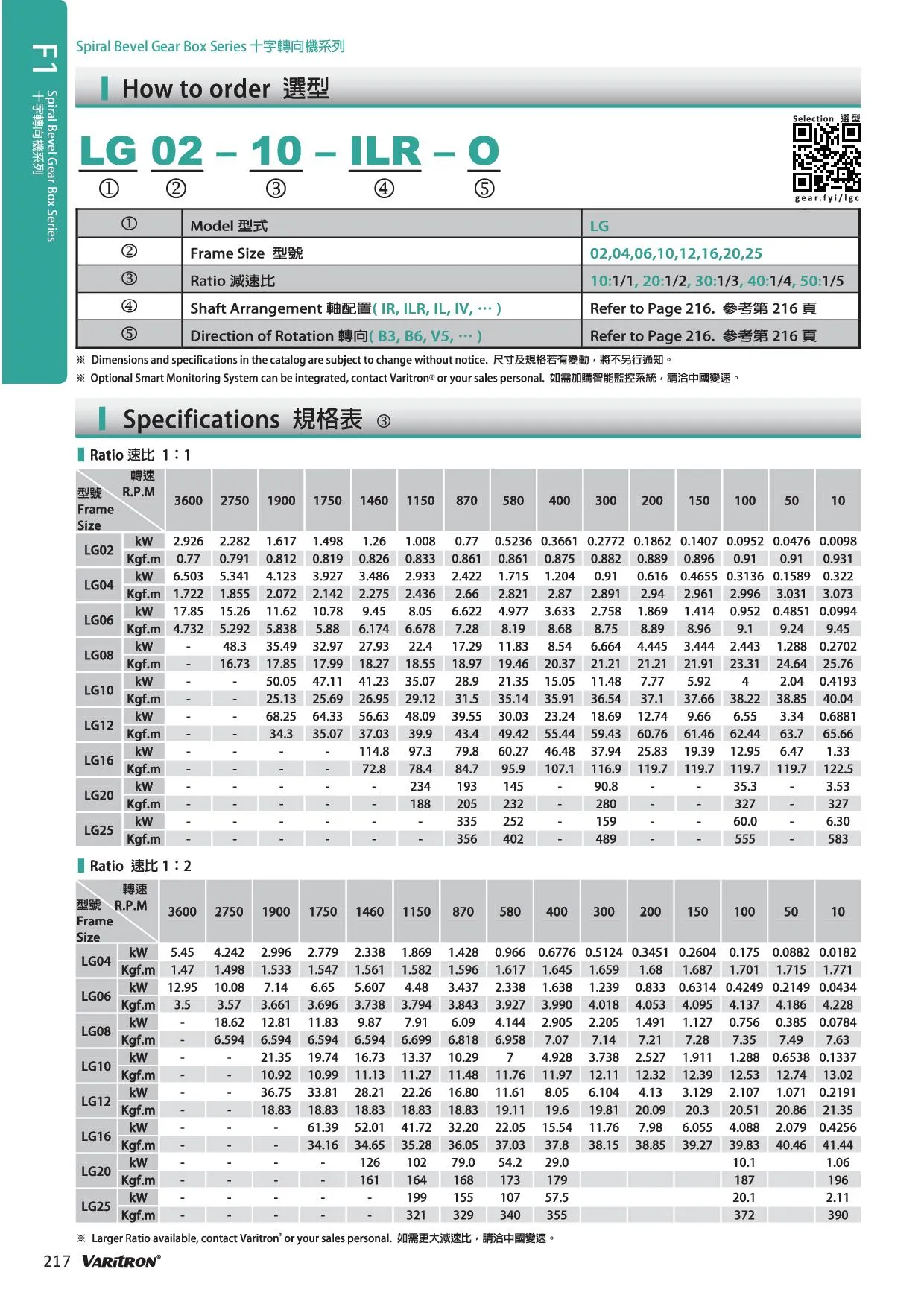

Spiral bevel gearbox Specifications

Q: What is Spiral bevel gear?

A: A spiral bevel gear is a bevel gear with helical teeth. The main application of this is in a vehicle differential, where the direction of drive from the drive shaft must be turned 90 degrees to drive the wheels. The helical design produces less vibration and noise than conventional straight-cut or spur-cut gear with straight teeth.

A spiral bevel gear set should always be replaced in pairs i.e. both the left hand and right hand gears should be replaced together since the gears are manufactured and lapped in pairs.
